Create Floorplan Reports

In this article

• Choose report type
• Choose floorplan
• Generate report

Choose report type

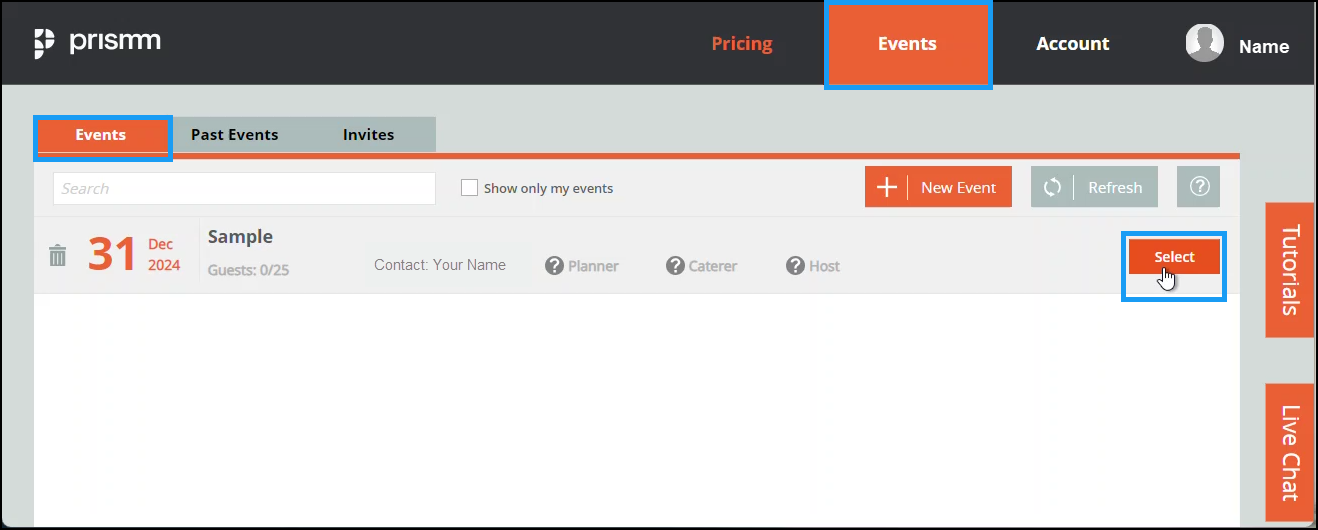

1. On the page Events, subtab Events, choose an event, in the row, far right side, select the button Select.



2. In the top level, horizontal navigation, select the tab Reports.

3. In the window Reports, in the drop-down menu Reports Type, select the option Floor plans.



Choose floorplan

1. From the drop-down menu Floor Plans, select the appropriate floorplan option.



2. Choose information to include. In the field Show, select the items to display.



Generate report

1. Select the button GENERATE.



   The report appears below the menus.

2. To the right of the drop-down menus, choose from options to Print, export to PDF.

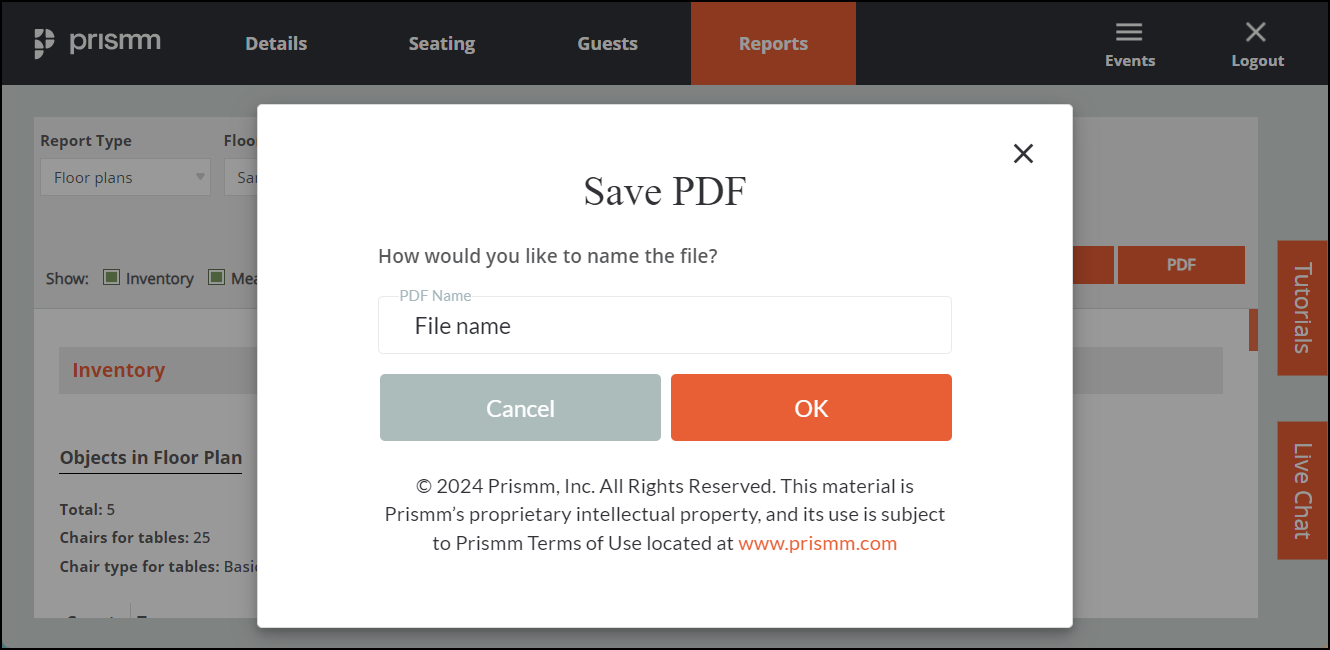

   Note: When selecting the option Print, selecting the button OK triggers the pop-up window Save PDF (printing from a PDF file provides the best results).
